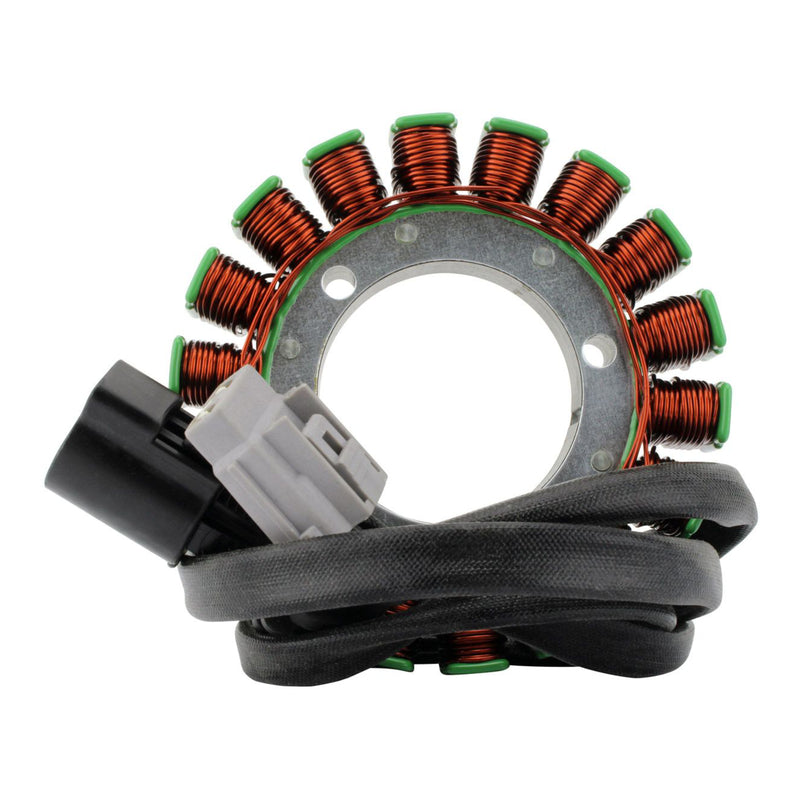

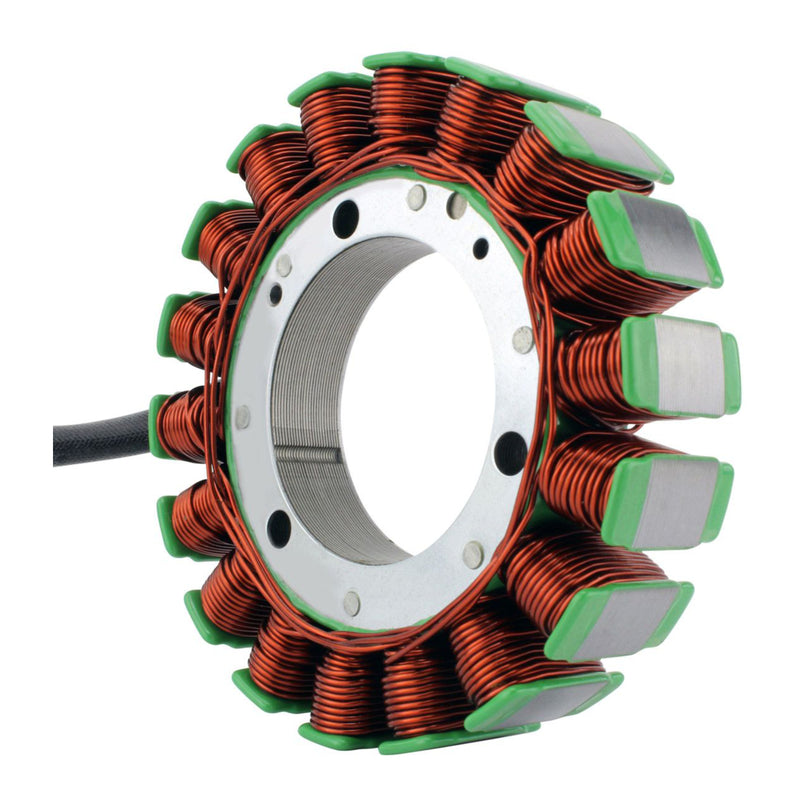

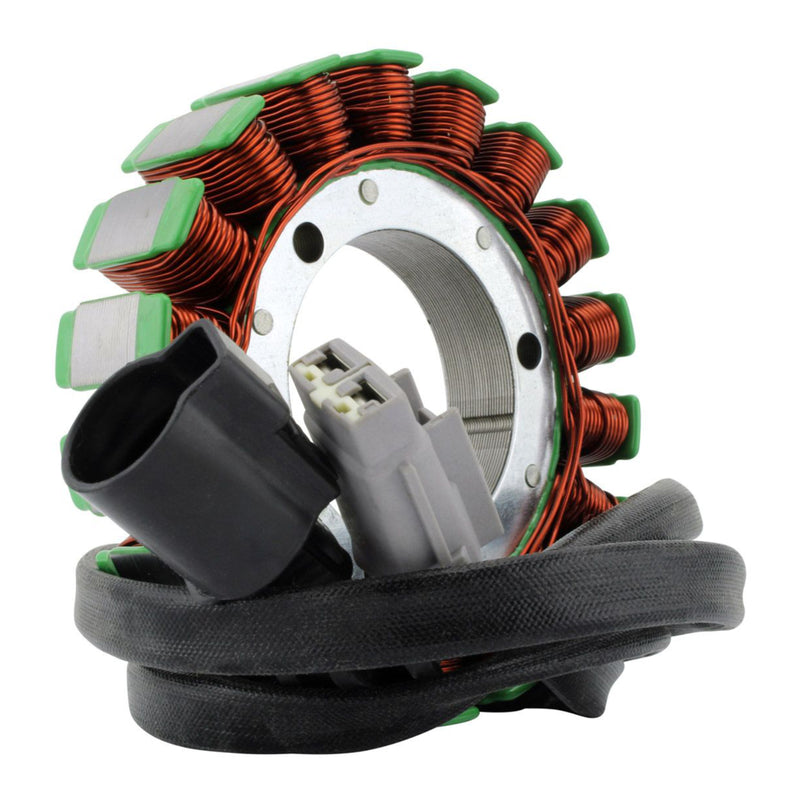

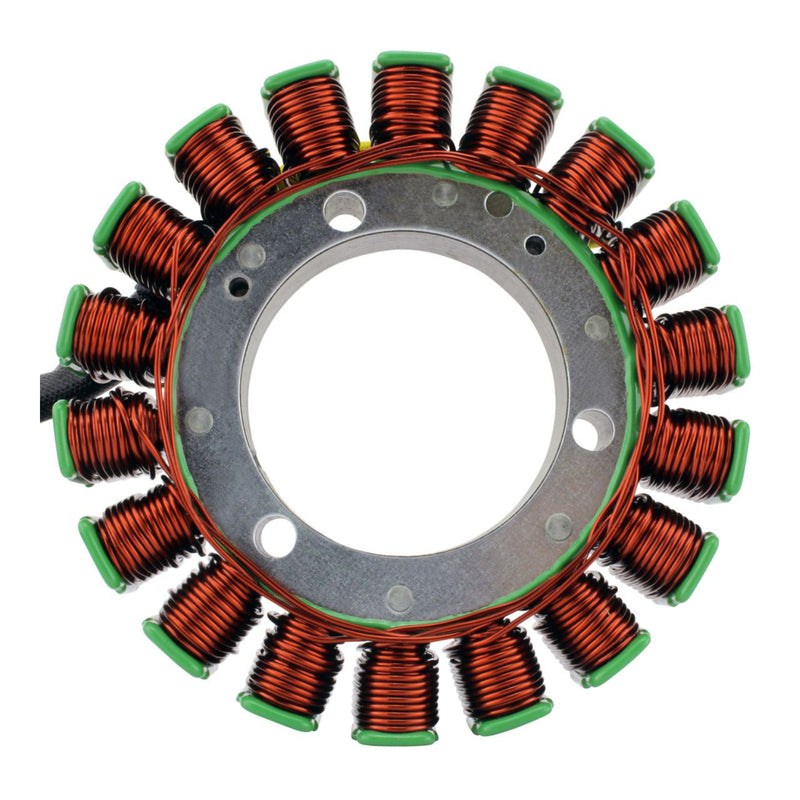

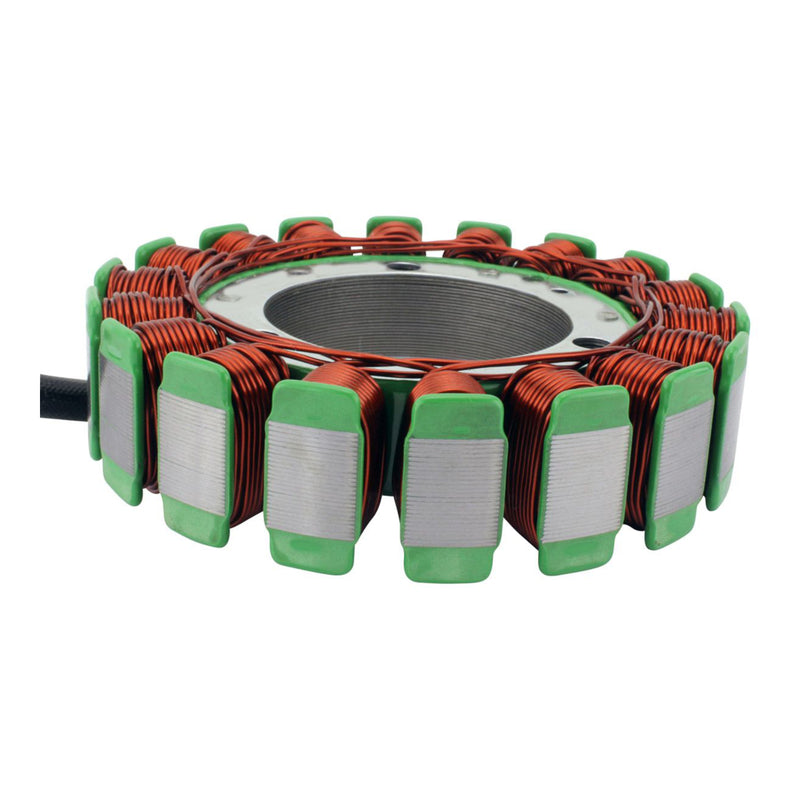

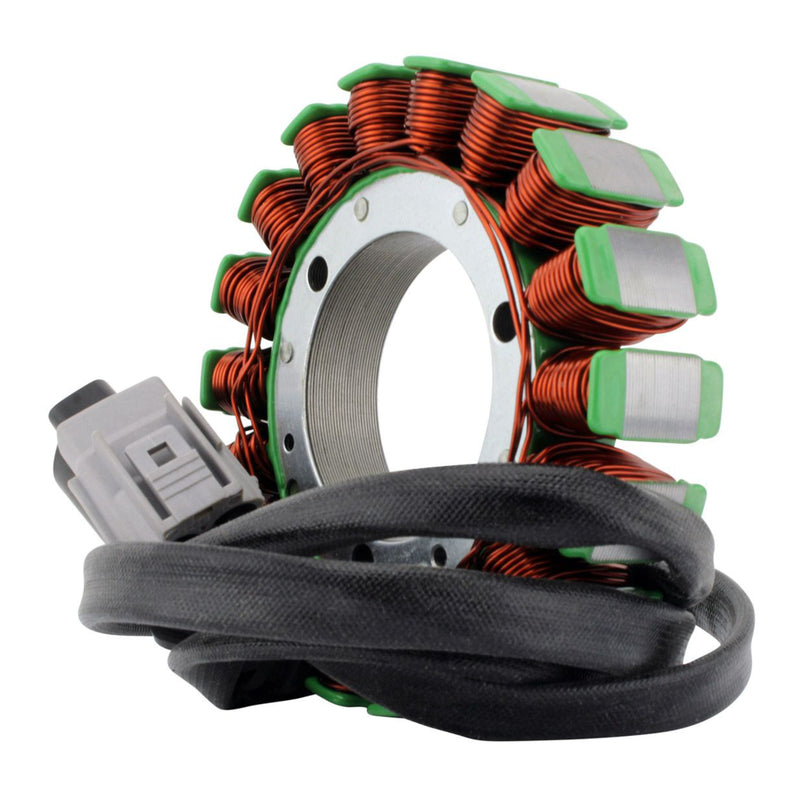

Generator Stator Kawasaki KRF750 Teryx '13

Plug-and-play aftermarket replacement generator stator from RM Stator.

Dimensions:

• Interior diameter: 54mm
• Exterior diameter: 115mm
• Thickness: 18mm
• Length of wires stator to grommet: 160mm
• Length of wires grommet to plug: 840mm

Other specifications:

• Number of wires: 3

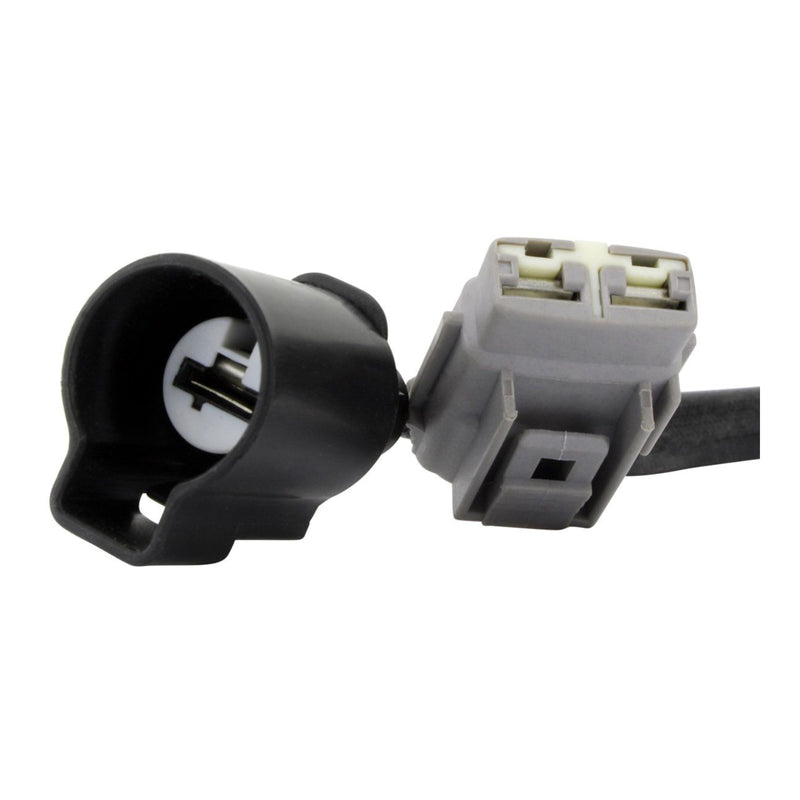

• Number of plugs: 2
• Number of pins: 3
• Number of poles: 18
• Wire to wire resistance:
• • Alternator: Black to Black = 0.4 ohms +-20%
  • Alternator: Black to ground = O.L

Details:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested
